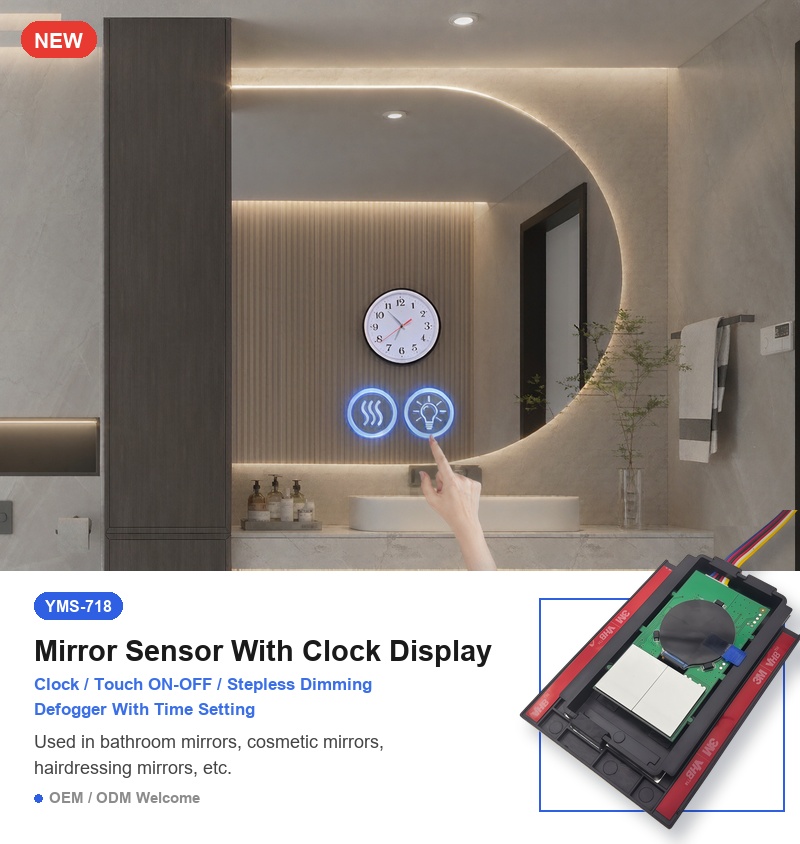

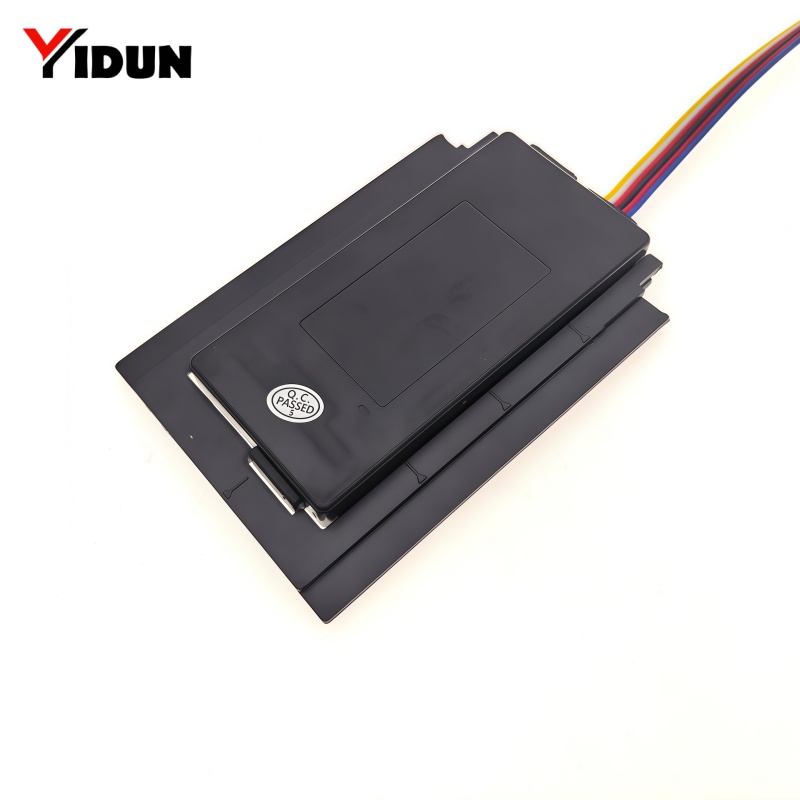

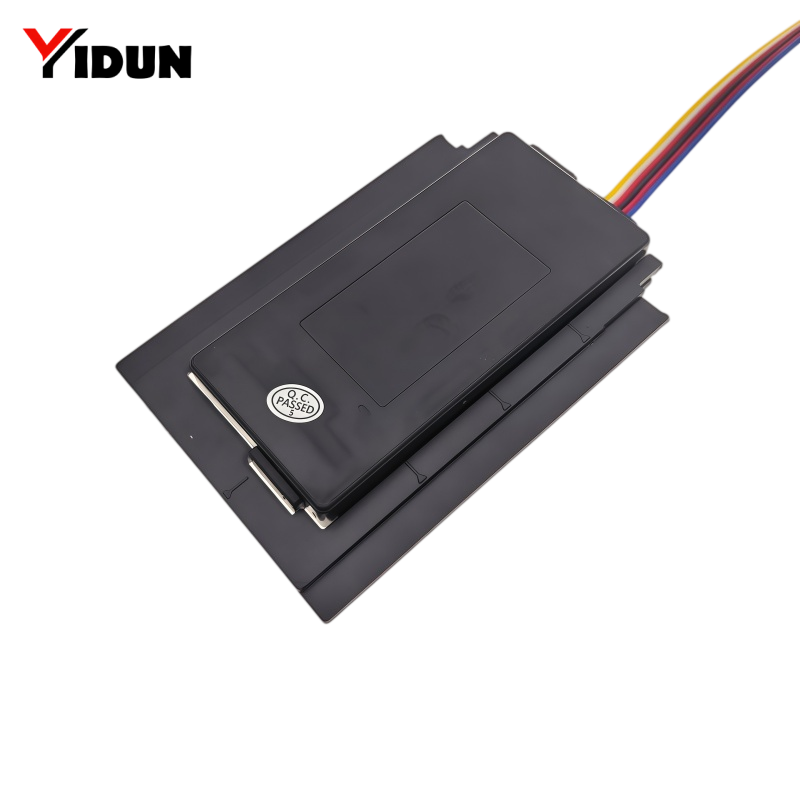

LED Mirror Multi-Function Touch Switch with Clock Display, Defogging & Stepless Dimming (DC 12-24V)

YMS‑718 Dual‑Key TFT Color‑Screen Clock Touch Switch [New Release]

Lighting · Anti‑fog · Clock — All‑in‑one behind‑mirror control module

• Dual‑Key Control：Independent dedicated keys for lighting and anti‑fog function, zero cross‑interference.
• Adjustable Color Temperature：Single tap cycles lighting among Cool → Natural → Warm light. Key backlight synchronously changes with selected light tone.
• Smooth Stepless Dimming：Long press over 1‑second for brightness adjustment, covering 2%‑100% range, flicker‑free soft lighting output.
• Auto‑return Clock Screensaver：Automatically jumps back to clock screensaver if no operation within 5 seconds after lighting adjustment.
• One‑Tap Anti‑fog Operation：Simple tap to enable / disable anti‑fog. Amber key backlight and on‑screen icon indicate working status clearly.
• Configurable Anti‑fog Timer：Timer range 30‑120 mins with 5‑min adjustment interval. Settings auto‑saved after 3‑second idle, auto power‑off upon timeout.

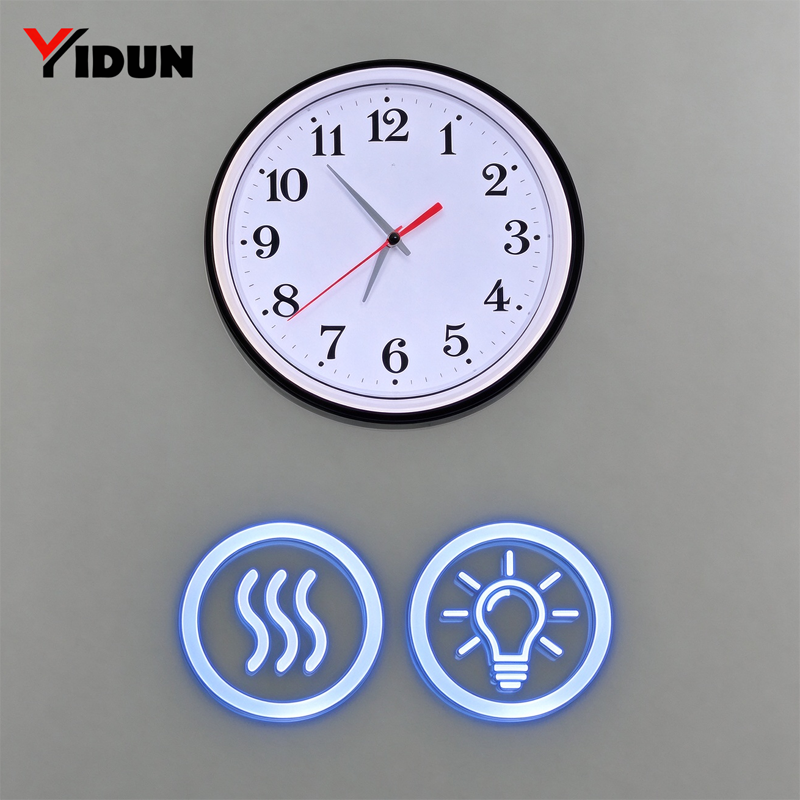

• TFT Clock Screensaver：Displays clock in standby mode, 11 selectable built‑in clock dial styles for visual customization.
• Intuitive Time & Dial Setup：Long‑press for 5s under clock standby interface. Key1 for value increment, Key2 for decrement; long press to fast‑forward adjustment.
• Selective Power‑off Memory：Clock time and dial preferences are saved persistently, no re‑configuration required after power outage.
• Safe Power‑on Reset：Lighting and anti‑fog states will NOT be stored. Both functions remain off after power‑on to avoid unintended activation.

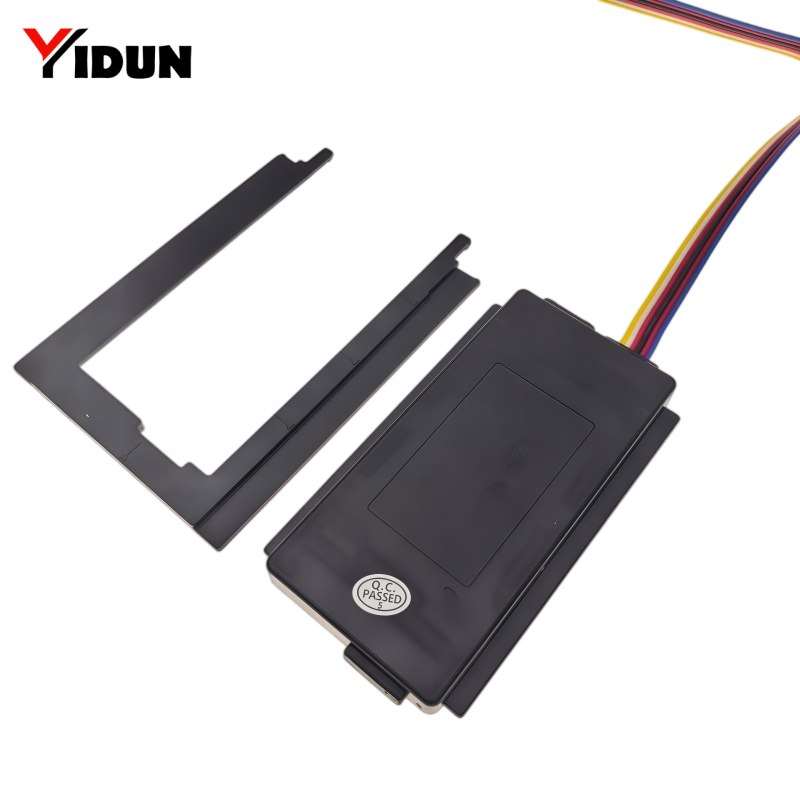

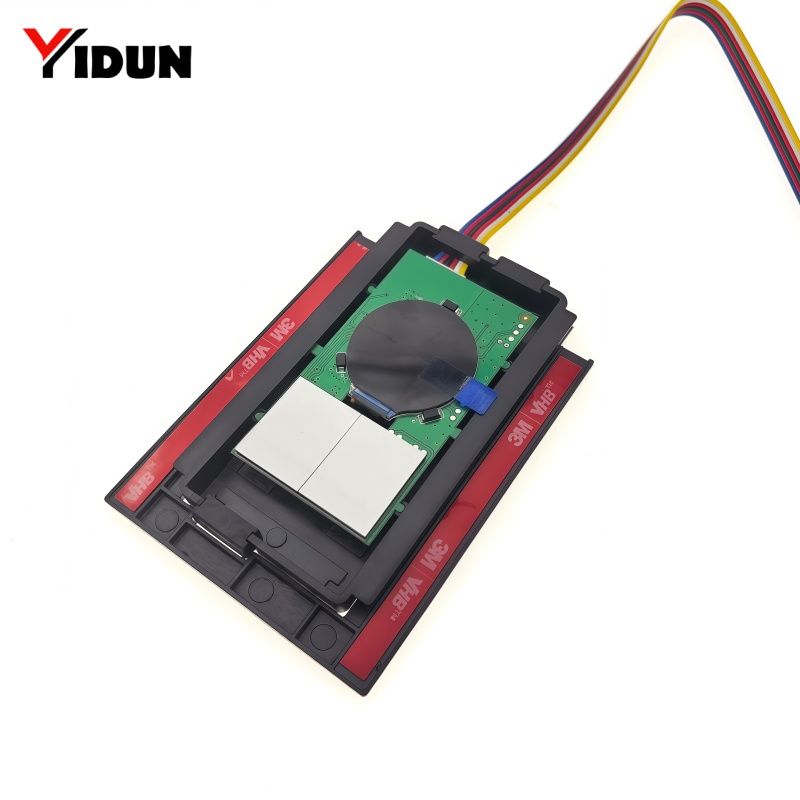

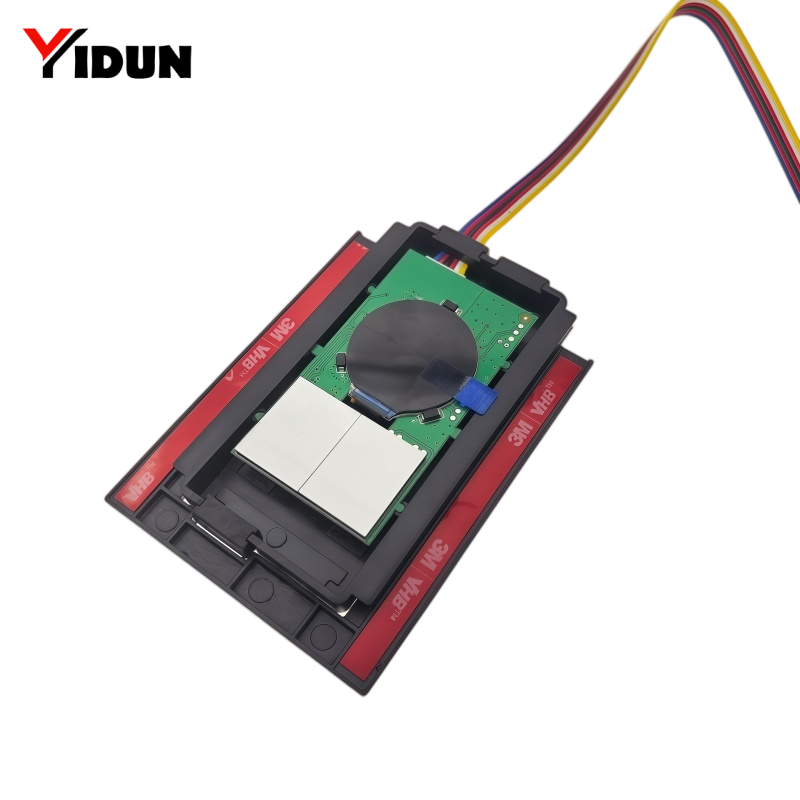

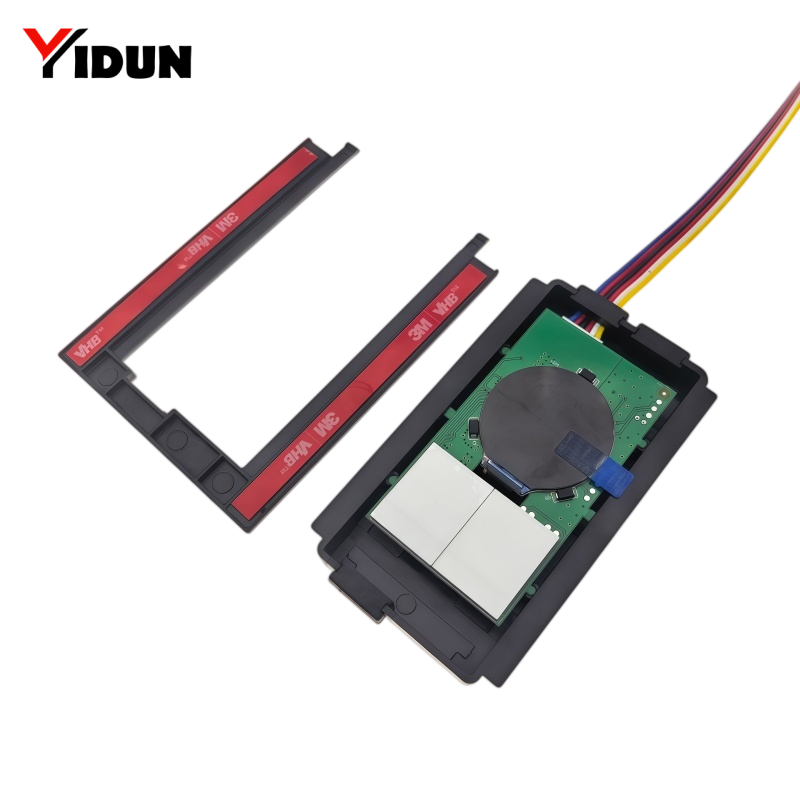

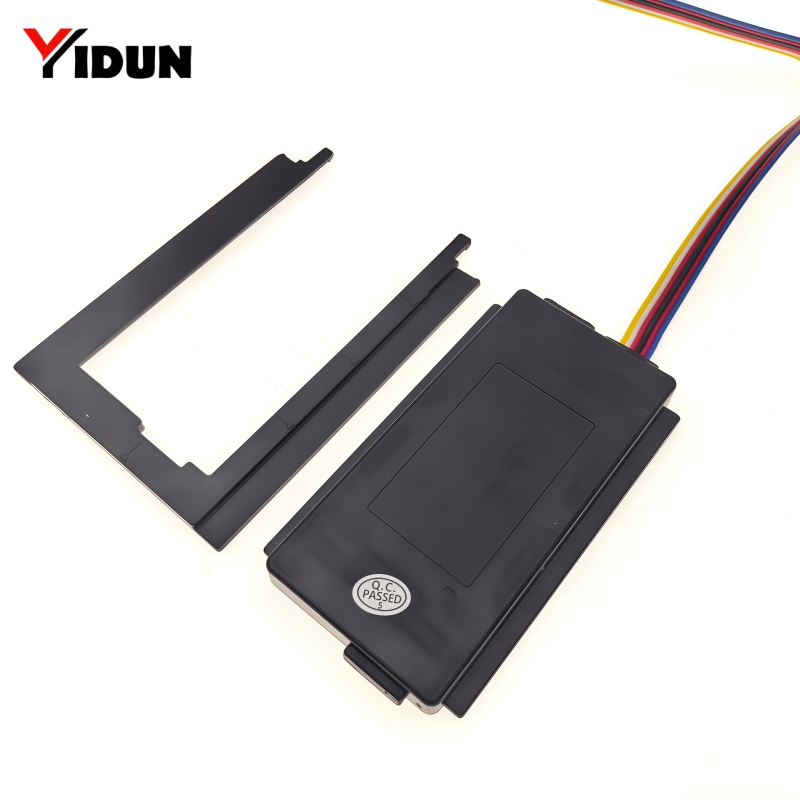

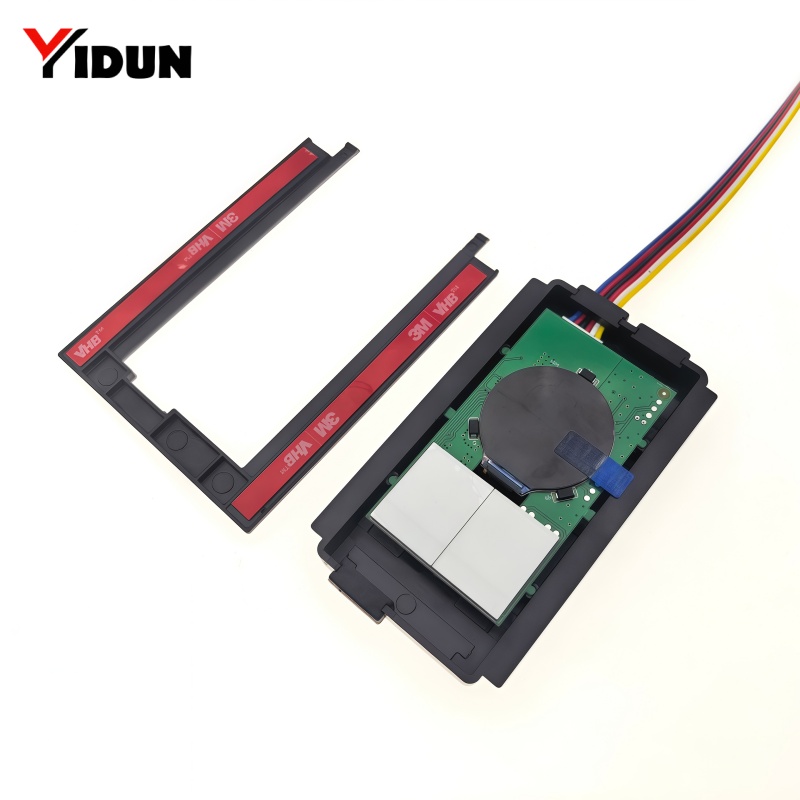

• Low‑Profile Hidden Installation：Compatible with standard 5 mm mirror glass, ultra‑slim 11 mm body. Only key symbols and round clock are visible from mirror surface.
• Customizable Key Backlight：Optional backlight colors: blue / white / amber, to match various mirror aesthetic requirements.
• Wide Application：Perfect for residential smart bathroom mirrors, hotel vanity mirror projects, B&B mirror cabinets and bespoke makeup mirror solutions.
• Wiring Reminder：Works with DC12‑24V input. Connect V+/V‑ to dual‑CCT LED strip; relay ports connect to anti‑fog heating film. Cut off power source prior to any wiring work.


FAQ

Q1. What is the YMS-718?
The YMS-718 is a multi-function touch switch for LED bathroom and vanity mirrors. It combines a TFT color-screen clock, dual color temperature lighting control, stepless dimming, and timed anti-fog control in a single module that mounts behind the mirror glass.

Q2. How long does the anti-fog function run?
The anti-fog timer can be set from 30 to 120 minutes in 5-minute steps. Settings save automatically after 3 seconds idle, and the anti-fog film switches off when the timer ends.

Q3. What is the dimming range?
Brightness is steplessly adjustable from 2% to 100% via PWM, with flicker-free output. Hold either the lighting key for 1 second to enter dimming mode.

Q4. Does it remember settings after a power cut?
Clock time and dial style are stored permanently and do not need to be reset after a power outage. Lighting and anti-fog states are deliberately NOT stored — both default to off on power-up to prevent the mirror from switching on by accident.

Q5. What mirror thickness does it fit?
The YMS-718 supports standard 5 mm mirror glass. The body is only 11 mm thick, so it sits flush behind the mirror with no bulge. Key icons and the round clock are laser-etched through the silver coating.

Q6. What power supply and load does it support?
DC 12-24V input, 5A / 60W maximum load, size 106 x 61 x 11 mm.

Q7. Can it drive both an LED strip and an anti-fog film at the same time?
Yes. Connect V+ and V- to the dual-CCT LED strip, and the relay terminals to the anti-fog heating film. Always disconnect power before wiring.

Q8. How are the two keys used?

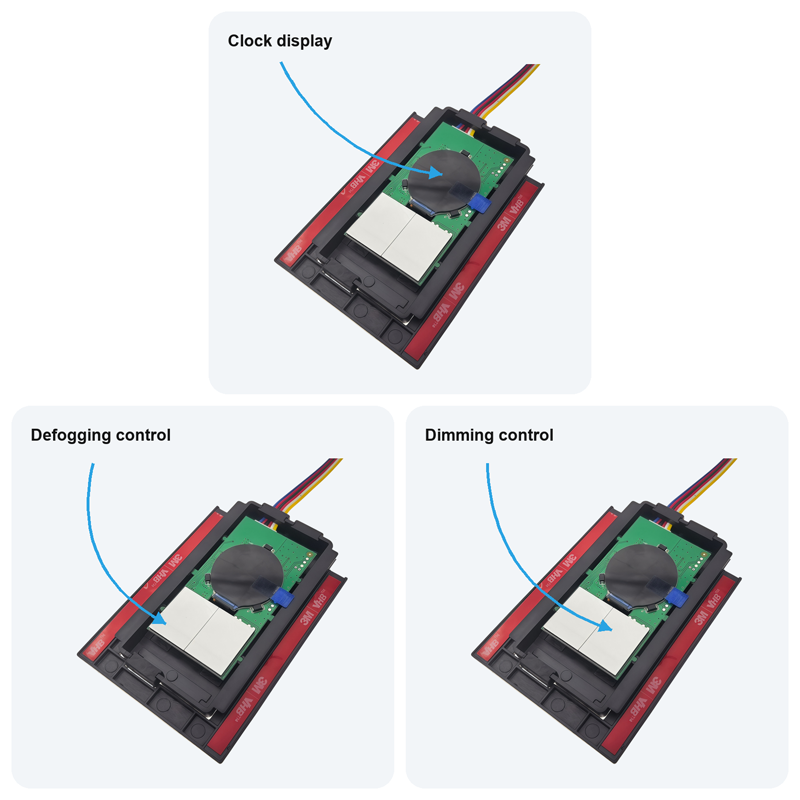

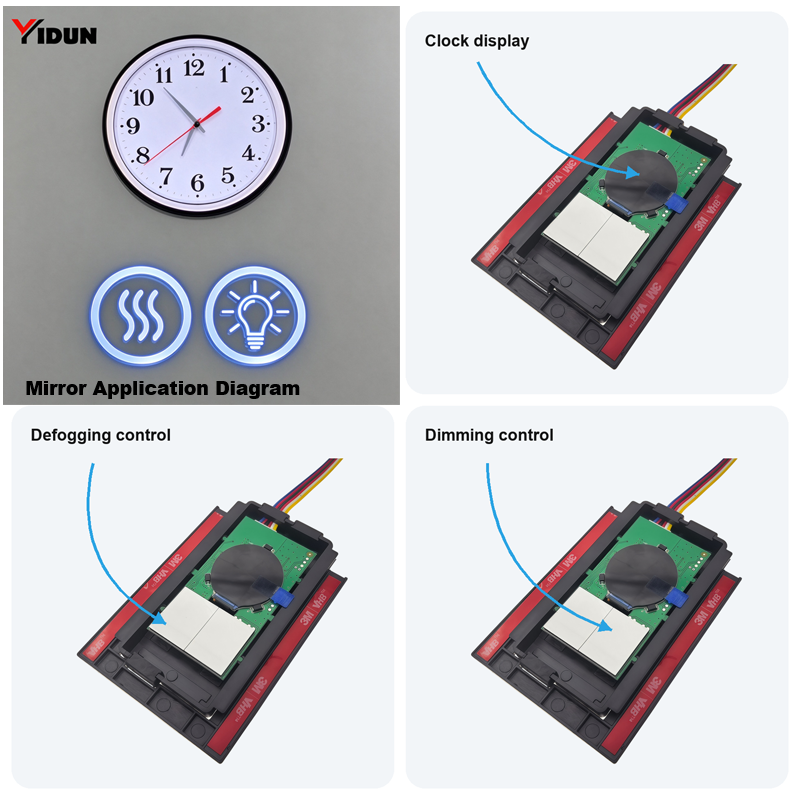

Key1 controls lighting — tap to cycle cool / natural / warm, hold 1 second to dim. Key2 controls anti-fog — tap to switch on or off, hold 1 second to set the timer. Long-pressing either key for 5 seconds on the clock screen enters time and dial setup.

Product Overview

The YMS-718 is a dual-key touch switch for LED bathroom and vanity mirrors, integrating a TFT color-screen clock, dual color temperature lighting, stepless dimming, and timed anti-fog control into one module that mounts discreetly behind the mirror glass. One key controls lighting, the other controls anti-fog, with a round color-screen clock showing through the mirror. It runs on DC 12-24V, supports up to 5A / 60W, and fits standard 5mm mirror glass.

Key Features

Dual-Key Control — Independent dedicated keys for lighting and anti-fog, with zero cross-interference.

TFT Color-Screen Clock — Displays the time as a clock screensaver on standby, with 11 built-in dial styles to switch between.

Dual Color Temperature — Tap to cycle Cool → Natural → Warm light; the key backlight changes color along with the selected tone.

Stepless Dimming — Hold the lighting key for 1 second to enter PWM dimming, adjustable from 2% to 100% with smooth, flicker-free output.

Timed Anti-Fog — Set the anti-fog timer from 30 to 120 minutes in 5-minute steps. Settings save automatically after 3 seconds idle, and the film switches off when the timer ends.

Power-Off Memory — Clock time and dial style are stored permanently and need no reset after a power cut. Lighting and anti-fog states are deliberately NOT stored — both default to off on power-up to prevent accidental activation.

Hidden Behind-Mirror Installation — Compatible with standard 5mm mirror glass. The 11mm-thin body mounts flush behind the mirror; only the key icons and round clock show through.

Specifications

Typical Applications

• LED bathroom mirror light control

• Vanity & makeup mirror lighting systems

• Hotel or commercial mirror installations

• Custom LED mirror lighting projects

Wiring Notes

DC 12-24V power supply. Connect V+ and V- to the dual-color LED strip, and the relay terminals to the anti-fog heating film. Always disconnect power before wiring, and follow the wiring diagram carefully.

Frequently Asked Questions

Q1. What is the YMS-718?
The YMS-718 is a multi-function touch switch for LED bathroom and vanity mirrors. It combines a TFT color-screen clock, dual color temperature lighting control, stepless dimming, and timed anti-fog control in a single module that mounts behind the mirror glass.

Q2. How long does the anti-fog function run?
The anti-fog timer can be set from 30 to 120 minutes in 5-minute steps. Settings save automatically after 3 seconds idle, and the anti-fog film switches off when the timer ends.

Q3. What is the dimming range?
Brightness is steplessly adjustable from 2% to 100% via PWM, with flicker-free output. Hold the lighting key for 1 second to enter dimming mode.

Q4. Does it remember settings after a power cut?
Clock time and dial style are stored permanently and do not need to be reset after a power outage. Lighting and anti-fog states are deliberately NOT stored — both default to off on power-up to prevent the mirror from switching on by accident.

Q5. What mirror thickness does it fit?
The YMS-718 supports standard 5 mm mirror glass. The body is only 11 mm thick, so it sits flush behind the mirror with no bulge. Key icons and the round clock are laser-etched through the silver coating.

Q6. What power supply and load does it support?
DC 12-24V input, 5A / 60W maximum load, size 106 x 61 x 11 mm.

Q7. Can it drive both an LED strip and an anti-fog film at the same time?
Yes. Connect V+ and V- to the dual-CCT LED strip, and the relay terminals to the anti-fog heating film. Always disconnect power before wiring.

Q8. How are the two keys used?

Key1 controls lighting — tap to cycle cool / natural / warm, hold 1 second to dim. Key2 controls anti-fog — tap to switch on or off, hold 1 second to set the timer. Long-pressing either key for 5 seconds on the clock screen enters time and dial setup.
